Sunday, March 31, 2013PrintSubscribe
When Last Command Name

Actions in the Code On Time user interface are displayed based on several conditions. When the conditions are fulfilled, the action is displayed. The When Last Command Name condition will only display an action when the previous action matches the specified command name. If When Last Command Name is null, the action will be displayed if Select action or no action is performed and the other conditions are matched.

For example, when a Customers record is selected, the Edit, Delete, and Close actions are displayed. New Customers action is available on the action bar, as well as Actions and Report dropdowns.

Edit, Delete, and Close actions displayed when a record is selected.

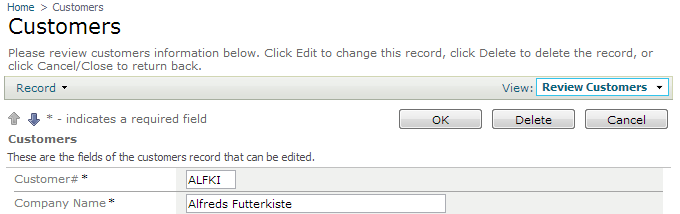

When the Edit action is activated, the buttons are replaced by OK, Delete, and Cancel. The action bar only has one dropdown, Record.

OK, Delete, and Cancel actions displayed when a record is edited.

Note that all reporting actions have been hidden. Let’s add another Report action what will only be displayed after Edit action has been performed.

Start the Project Designer. In the Project Explorer, switch to the Controllers tab. Right-click on Customers / Actions / ag7 (ActionBar) – Report node, and press New Action.

Creating a new action for Customers controller.

Assign the following values:

Property Value
Command Name Report (PDF)
Header Text Create a report
When Last Command Name Edit
Description Creates a PDF report when editing a record.

Press OK to save the action. On the toolbar, press Browse.

Navigate to Customers page and select a record. The new Report action is not displayed.

The new Report action is not yet displayed on the action bar.

Start editing the record. The new action will appear as the only option in the Report dropdown.

When Edit action is triggered, the new Report action is displayed.

Sunday, March 31, 2013PrintSubscribe
Auto Hide Data Views

The Auto Hide property is used to hide child data views or containers when a master record has not been selected.

Self

Let’s create a page that will contain two data views: Customers and Orders. The orders will be filtered by the selected customer.

Start the Project Designer. In the Project Explorer toolbar, click on the New Page icon.

Creating a new page.

Assign a name to the page.

Property Value
Name Auto Hide Test

Press OK to save the page. In the Project Explorer, drop the new page node on the right side of Home node to place it second in the menu.

Moving Auto Hide Test page.

Switch to the Controllers tab. Hold down Ctrl key, and click on Customers and Orders data controller nodes. Right-click, and press Copy.

Copying Customers and Orders data controller nodes.

Switch back to the Pages tab. Right-click on Auto Hide Test page, and press Paste. The controllers will be instantiated as data views in individual containers.

Pasting onto 'Auto Hide Test' page.     Two data views instantiated from the pasted data controllers.

Double-click on Auto Hide Test / c102 / view2 (Orders) node. Make the following changes:

Property Value
View grid1
Filter Source view1
Filter Field #1 CustomerID
Auto Hide Self

Press OK to save. On the toolbar, press Browse.

Navigate to the Auto Hide Test page. Note that only a list of customers is visible on the page.

Only master data views is visible on the page.

When a customer is selected, the filtered list of orders is displayed underneath.

When master record is selected, the child view is displayed.

Container

When there are multiple child data views in a single container or tabs, it is advisable to hide the whole container instead.

In the Project Explorer, double-click on Auto Hide Test / c102 / view2 (Orders, grid1) –> view1 node.

Node view1 in container c102 of page Auto Hide Test.

Change the following values:

Property New Value
Activator Tab
Text Orders

Save the data view. Browse the web app – notice that the tab element is not hidden when no customer is selected.

The tab element is not hidden.

The data view will appear when a master record is selected.

Data view is shown when master record is selected.

Switch back to the Project Designer, and change Auto Hide to “Container”.

Property New Value
Auto Hide Container

Press OK to save, and press Browse. The tab element will now be hidden.

Tab element is now hidden.

Note that if the master view is in the same container as the child view, an Auto Hide of “Container” will hide both views.

Tuesday, March 26, 2013PrintSubscribe
Upload and Download: External Storage

Code On Time web applications perform automatic handling of binary large objects (BLOB). Thumbnails of images are displayed in grids and forms, such as in the screenshot below.

Automatic handling of pictures in BLOB fields.

Users can clear or replace the field with files of their own choosing. This functionality is available out-of-the-box and requires no extra programming when the data is stored in the database. It can be extended by adding utility fields to store the file name, size, and extension.

An alternative to database-stored data is use an external storage location. The data can be placed in online storage systems such as Amazon S3 or Microsoft Azure Storage. These systems provide many benefits, such as easy scalability and content delivery networks. The data can also be stored on a local Network Attached Storage (NAS).

Let’s implement a column in the Categories table of the sample Northwind database in order to store data on the local hard drive.

Adding Columns to the Categories Table

Start SQL Server Management Studio and connect to your database. In the Object Explorer, right-click on Databases / Northwind / Tables / dbo.Categories and press Design.

Designing the Categories table in Northwind database.

Add the following columns:

Column Name Data Type Allow Nulls
ExternalDocFileName nvachar(150) yes
ExternalDocLength int yes
ExternalDocContentType nvarchar(150) yes

Save the changes to the table.

Refreshing the Project

Start Code On Time web application generator. Click on the project name, and select Refresh. Check the box next to Categories controller and continue to refresh the web app.

Refreshing the Categories controller.

Implementing ExternalDoc Field

Start the Project Designer. In the Project Explorer, right-click on Categories / Fields node, and press New Field.

Creating a new field in Categories controller.

Assign the following values:

Property Value
Name ExternalDoc
Type Byte[]
Allow null values. yes
The value of this field is computed at run-time by SQL expression. yes
Value is retrieved on demand yes
Source Fields CategoryID
On Demand Handler CategoriesExternalDoc
On Demand Style Thumbnail
Label External Doc

Save the field.

We will need to bind the field to grid1 and editForm1 views and prevent the user from editing the utility fields. In the Project Explorer, drag Categories / Fields  / ExternalDoc (Byte[]) field node onto Categories / Views / grid1.

Dropping ExternalDoc field onto view 'grid1'.     Data field instantiated in 'grid1' view.

Drag ExternalDoc (Byte[]) field node onto Categories / Views / editForm1 node.

Dropping ExternalDoc field onto view 'editForm1'.      Data field instantiated in 'editForm1' view.

Let’s prevent users from editing the utility fields in editForm1 or grid1. Right-click on Categories / Views node, and press List.

List context menu option for Views of 'Categories' controller.

Upload of binary content is currently only supported for existing records. Let’s remove the utility fields from createForm1. Click on Categories / Views / createForm1 / ExternalDocFileName data field node. Hold Shift key, and click on ExternalDocContentType. Right-click and press Delete.

Deleting blob fields from view 'createForm1'.

At the top of the Project Browser, switch to Data Fields tab. A grid of data fields will be displayed. Make the following changes to Format and Text Mode properties:

Field Name View Format Text Mode
ExternalDocFileName editForm1   Static
ExternalDocLength editForm1 n0 Static
ExternalDocContentType editForm1   Static
ExternalDocFileName grid1   Static
ExternalDocLength grid1 n0 Static
ExternalDocContentType grid1   Static

Implementing the Business Rules

If you try to upload files in the ExternalDoc field, an error will be displayed. File upload and download will have to be handled with custom business rules, which will do the following:

  • The first business rule will prevent the default upload behavior, and persist the file contents to the specified folder. The file will be named using the CategoryID and generic “.bin” extension.
  • When the binary content needs to be streamed to the client browser, another business rule will prevent the default behavior and use the CategoryID to find the file and pass it to the client.
  • The third method will update the value of the binary field with the primary key of the record if an external file exists. The client library will pass the ID to the server components and display a thumbnail.
    If the binary field is empty then the method will return the CategoryID preceded by the word null and the symbol “|”. For example, if the category ID is 7491 then the value stored in ExternalDoc will be null|7491
    We are not actually probing if the file exists in the designated folder. Instead we make an assumption that if ExternalDocFileName field value is not blank then the file has been previously uploaded without errors.

The folder that blobs will be saved to must exist before they will be saved. Navigate to your My Documents folder and create another folder with the name “My External Doc Files”.

Creating the 'My External Doc Files' folder in My Documents.

In the Project Explorer, right-click on Categories / Business Rules node, and press New Business Rule.

Creating a new business rule for Categories controller.

Assign the following properties:

Property Value
Type C# / Visual Basic
Command Name UploadFile
Command Argument ExternalDoc
Phase Execute

Save the business rule. Create another business rule with the following properties:

Property Value
Type C# / Visual Basic
Command Name DownloadFile
Command Argument ExternalDoc
Phase Execute

Create a third rule:

Property Value
Type C# / Visual Basic
Command Name Select
Phase Execute

On the toolbar, press Browse to generate the business rule files. When complete, right-click on Categories / Business Rules / UploadFile (Code / Execute) – r100 node, and press Edit Rule in Visual Studio.

Editing the UploadFile business rule in Visual Studio.

Replace the code base with the following. Note that a Stream parameter has been added to the method definition in order to handle the uploaded file.

C#:

using System;
using MyCompany.Data;
using System.IO;

namespace MyCompany.Rules
{
    public partial class CategoriesBusinessRules : MyCompany.Data.BusinessRules
    {
        [Rule("r100")]
        public void r100Implementation(int? categoryID, string categoryName,
            string description, string externalDocFileName, int? externalDocLength,
            string externalDocContentType, Stream externalDoc)
        {
            PreventDefault();
            string fileName = Path.Combine(
                Environment.GetFolderPath(Environment.SpecialFolder.MyDocuments),
                String.Format(@"My External Doc Files\{0}.bin", categoryID));
            Stream output = File.Create(fileName);
            externalDoc.CopyTo(output);
            output.Close();
        }
    }
}

Visual Basic:

Imports MyCompany.Data
Imports System
Imports System.IO

Namespace MyCompany.Rules

    Partial Public Class CategoriesBusinessRules
        Inherits MyCompany.Data.BusinessRules
        <Rule("r100")> _
        Public Sub r100Implementation(ByVal categoryID As Nullable(Of Integer),
                                      ByVal categoryName As String,
                                      ByVal description As String,
                                      ByVal externalDocFileName As String,
                                      ByVal externalDocLength As Nullable(Of Integer),
                                      ByVal externalDocContentType As String,
                                      ByVal externalDoc As Stream)
            PreventDefault()
            Dim fileName As String = Path.Combine( _
                Environment.GetFolderPath(Environment.SpecialFolder.MyDocuments), _
                String.Format("My External Doc Files\\{0}.bin", categoryID))
            Dim output As Stream = File.Create(fileName)
            externalDoc.CopyTo(output)
            output.Close()
        End Sub
    End Class
End Namespace

Save the file. In the Project Explorer, right-click on Categories / Business Rules / DownloadFile (Code / Execute) – r101 node and press Edit Rule in Visual Studio.

Editing the DownloadFile business rule in Visual Studio.

Replace the code:

C#:

using System;
using MyCompany.Data;
using System.IO;

namespace MyCompany.Rules
{
    public partial class CategoriesBusinessRules : MyCompany.Data.BusinessRules
    {
        [Rule("r101")]
        public void r101Implementation(int? categoryID, string categoryName, string description,
            string externalDocFileName, int? externalDocLength, string externalDocContentType,
            Stream externalDoc)
        {
            PreventDefault();
            string fileName = Path.Combine(
                Environment.GetFolderPath(Environment.SpecialFolder.MyDocuments),
                String.Format(@"My External Doc Files\{0}.bin", categoryID));
            Stream input = File.OpenRead(fileName);
            input.CopyTo(externalDoc);
            input.Close();
        }
    }
}

Visual Basic:

Imports MyCompany.Data
Imports System
Imports System.IO

Namespace MyCompany.Rules

    Partial Public Class CategoriesBusinessRules
        Inherits MyCompany.Data.BusinessRules
        <Rule("r101")> _
        Public Sub r101Implementation(ByVal categoryID As Nullable(Of Integer),
                                      ByVal categoryName As String,
                                      ByVal description As String,
                                      ByVal externalDocFileName As String,
                                      ByVal externalDocLength As Nullable(Of Integer),
                                      ByVal externalDocContentType As String,
                                      ByVal externalDoc As Stream)
            PreventDefault()
            Dim fileName As String = Path.Combine( _
                Environment.GetFolderPath(Environment.SpecialFolder.MyDocuments), _
                String.Format("My External Doc Files\\{0}.bin", categoryID))
            Dim input As Stream = File.OpenRead(fileName)
            input.CopyTo(externalDoc)
            input.Close()
        End Sub
    End Class
End Namespace

Save the file. Finally, right-click on Categories / Business Rules / Select (Code / Execute) – r101 node and press Edit Rule in Visual Studio.

Editing the Select business rule in Visual Studio.

Replace the code with the following:

C#:

using System;
using MyCompany.Data;

namespace MyCompany.Rules
{
    public partial class CategoriesBusinessRules : MyCompany.Data.BusinessRules
    {
        [Rule("r102")]
        public void r102Implementation(int? categoryID, string categoryName,
            string description, string externalDocFileName, int? externalDocLength,
            string externalDocContentType)
        {
            if (!String.IsNullOrEmpty(externalDocFileName))
                UpdateFieldValue("ExternalDoc", categoryID);
            else
                UpdateFieldValue("ExternalDoc", String.Format("null|{0}", categoryID));
        }
    }
}

Visual Basic:

Imports MyCompany.Data
Imports System

Namespace MyCompany.Rules

    Partial Public Class CategoriesBusinessRules
        Inherits MyCompany.Data.BusinessRules
        <Rule("r102")> _
        Public Sub r102Implementation(ByVal categoryID As Nullable(Of Integer),
                                      ByVal categoryName As String,
                                      ByVal description As String,
                                      ByVal externalDocFileName As String,
                                      ByVal externalDocLength As Nullable(Of Integer),
                                      ByVal externalDocContentType As String)
            If Not String.IsNullOrEmpty(externalDocFileName) Then
                UpdateFieldValue("ExternalDoc", categoryID)
            Else
                UpdateFieldValue("ExternalDoc", String.Format("null|{0}", categoryID))
            End If
        End Sub
    End Class
End Namespace

Save the file.

Viewing the Results

On the Project Designer toolbar, press Browse. When complete, navigate to the Categories page. The utility fields will be present in the grid.


Start editing a record, and upload a file to External Doc field. The file will be uploaded successfully, and the utility fields will be updated with the correct information.


Clicking on the thumbnail will download or open the file with the correct format. The file is stored in the folder My Documents/My External Doc Files with a file name of the CategoryID and extension of “.bin”.
