Internal Storage

Code On Time web applications automatically handle storage of binary large objects (BLOB). For example, the Northwind sample database contains pictures of each record in the Categories table. The web app displays the pictures in the grid and form views. Clicking on the thumbnail will download the picture.

Pictures displayed from the BLOB field in Categories table.

Open the edit form for a category and edit the record. The control under the Picture thumbnail allows replacing or clearing the blob stored in the field.

Control under the Picture field allows changing or clearing the blob.

Any type of file may be uploaded to the field. However, the file name and type is not stored by the database. When the user tries to download the file again, the user will receive a message similar to the one below.

When a file is downloaded, the file name and type are not preserved.

The generic file name is “CategoriesPicture_1” and the content type is “.octet-stream”.

In order to preserve the file name and type, utility fields will be added to the Categories table.

Adding Utility Fields

Start SQL Server Management Studio. In the Object Explorer, right-click on Databases / Northwind / Categories and press Design.

Designing the Categories table in SQL Server Management Studio.

Add the following columns:

Column Name Data Type Allow Nulls
PictureFileName nvarchar(100) true
PictureContentType nvarchar(100) true
PictureLength int true

Please note that these columns are case-sensitive. If the name of your field is “XXX”, the application framework will attempt to locate utility fields “XXXFileName”, “XXXContentType”, and “XXXLength”.

Save the changes to the table.

Refreshing the Project

Start the web application generator. Click on the project name and press Refresh. Select Categories controller and continue to refresh the project.

Refreshing the Categories controller.

Viewing the Results

Continue to regenerate the web app. When complete, navigate to the Categories page. Select a record, and upload any non-image file.

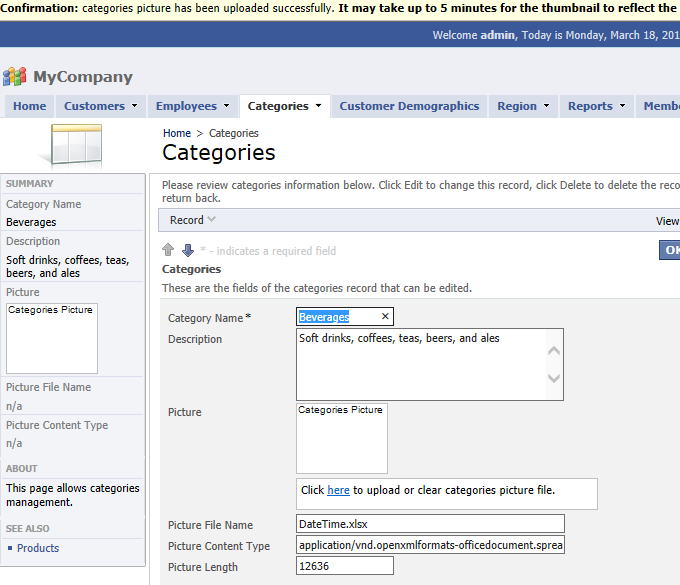

File Name, Content Type, and Length fields have been automatically updated when a file is uploaded.

Note that the three utility fields have automatically been updated. Click on the thumbnail to download the file. Note that the file name and type have been correctly added.

When attempting to download the file, the name and type are correctly assigned.
