Thursday, November 29, 2012PrintSubscribe
Calculating Read-Only Fields with C# and Visual Basic

Let’s create a calculated field in the Employees controller that will combine First Name and Last Name fields.

Start the Project Designer. In the Project Explorer, switch to the Controllers tab. Right-click on Employees / Fields node, and press New Field option.

New Field context menu option for Employees controller in Code On Time web application generator.

Assign the following properties:

Property Value
Name FullName
Type String
Length 80
Allow Null Values true
The value is calculated by a business rule expression true
Label Full Name
Values of this field cannot be edited true

Press OK to save.

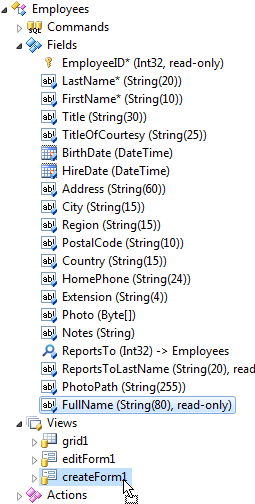

In the Project Explorer, drag Employees / Fields / FullName field node and drop it onto Employees / Views / createForm1 to add a data field.

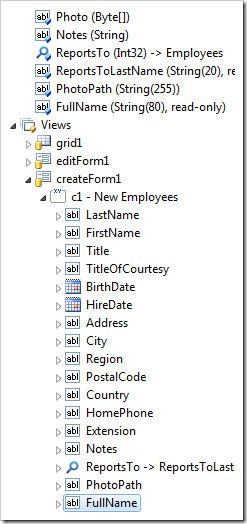

Dropping FullName field node onto 'createForm1' view.     FullName data field created in 'createForm1' view.

Right-click on Employees / Fields / FullName node, and press Add Code Converter.

Add Code Converter context menu option on FullName field node in the Project Designer.

Double-click on Employees / Fields / FullName node, and change the Context Fields property:

Property Value
Context Fields FirstName, LastName

On the toolbar, press Browse to generate the web application and code business rule.

Right-click on Employees / Business Rules / FullName_Convertor and press Edit Rule in Visual Studio.

Edit Rule in Visual Studio context menu option for 'FullName_Converter' business rule node.

The business rule file will open in Visual Studio. Replace the default code with the following:

C#:

using System;
using MyCompany.Data;

namespace MyCompany.Rules
{
    public partial class EmployeesBusinessRules : MyCompany.Data.BusinessRules
    {

        /// <summary>
        /// Rule "FullName_Converter" implementation:
        /// This method will execute in any view before an action
        /// with a command name that matches "Calculate|Insert|Update".
        /// </summary>
        [Rule("r100")]
        public void r100Implementation(
                    int? employeeID,
                    string lastName,
                    string firstName,
                    string title,
                    string titleOfCourtesy,
                    DateTime? birthDate,
                    DateTime? hireDate,
                    string address,
                    string city,
                    string region,
                    string postalCode,
                    string country,
                    string homePhone,
                    string extension,
                    string notes,
                    int? reportsTo,
                    string reportsToLastName,
                    string photoPath,
                    string fullName)
        {
            if (!(String.IsNullOrEmpty(firstName)) && !(String.IsNullOrEmpty(lastName)))
                UpdateFieldValue("FullName", firstName + ' ' + lastName);
        }
    }
}

Visual Basic:

Imports MyCompany.Data
Imports System

Namespace MyCompany.Rules

    Partial Public Class EmployeesBusinessRules
        Inherits MyCompany.Data.BusinessRules

        ''' <summary>
        ''' Rule "FullName_Converter" implementation:
        ''' This method will execute in any view before an action
        ''' with a command name that matches "Calculate|Insert|Update".
        ''' </summary>
        <Rule("r100")>  _
        Public Sub r100Implementation( _
                    ByVal employeeID As Nullable(Of Integer),  _
                    ByVal lastName As String,  _
                    ByVal firstName As String,  _
                    ByVal title As String,  _
                    ByVal titleOfCourtesy As String,  _
                    ByVal birthDate As Nullable(Of DateTime),  _
                    ByVal hireDate As Nullable(Of DateTime),  _
                    ByVal address As String,  _
                    ByVal city As String,  _
                    ByVal region As String,  _
                    ByVal postalCode As String,  _
                    ByVal country As String,  _
                    ByVal homePhone As String,  _
                    ByVal extension As String,  _
                    ByVal notes As String,  _
                    ByVal reportsTo As Nullable(Of Integer),  _
                    ByVal reportsToLastName As String,  _
                    ByVal photoPath As String,  _
                    ByVal fullName As String)
            If (Not (String.IsNullOrEmpty(firstName)) AndAlso Not (String.IsNullOrEmpty(lastName))) Then
                UpdateFieldValue("FullName", firstName + " " + lastName)
            End If
        End Sub
    End Class
End Namespace

Save the file.

Switch back to the web application generator. On the toolbar, press Browse.

Navigate to the Employees page, and create a new employee. Type a value for Last Name and First Name.

Typing in First and Last Name into each respetive field on the New Employees form.

The Full Name field will be updated when the user presses Tab or shifts focus away from the field.

Tabbing away from First Name will update the Full Name calculated field.

Thursday, November 29, 2012PrintSubscribe
Calculating Read-Only Fields with JavaScript

When storing personal information, it is common practice to enter first and last name separately into the database. However, it is easier to quickly read and analyze data that combines the two fields into one.

Let’s create a Full Name calculated field in the Employees controller that will concatenate First Name and Last Name field values.

Start the Project Designer. In the Project Explorer, switch to the Controllers tab. Right-click on Employees / Fields node, and press New Field.

New Field context menu option for Employees controller in the Project Explorer of web application designer.

Give this field the following settings:

Property Value
Name FullName
Type String
Length 80
Allow Null Values true
The value is calculated by a business rule expression true
Label Full Name
Values of this field cannot be edited true

Press OK to save the field.

In the Project Explorer, drag Employees / Fields / FullName (String(80), read-only field node and drop it onto Employees / Views / createForm1 to create a data field.

Dropping 'FullName' field node onto 'createForm1' view.     FullName data field created in 'createForm1' view.

Right-click on Employees / Fields / FullName (String(80), read-only node, and press Add JavaScript Converter.

'Add JavaScript Converter' context menu option for FullName field node.

Double-click on Employees / Fields / FullName (String(80), read-only node, and change the Context Fields property:

Property Value
Context Fields FirstName, LastName

The new business rule will open in the Project Browser. Replace the default script with the following:

Property New Value
Script
if ([FirstName] != null && [LastName] != null) {
    [FullName] = [FirstName] + ' ' + [LastName];
}

Press OK to save the business rule. On the Project Browser toolbar, press Browse to generate the web application.

Navigate to the Employees page, and create a new employee. The Full Name field is displayed at the bottom of the form, and is read-only. If a value is entered into First Name, the field will not be updated.

Full Name field is present at the bottom of New Employees form.

Enter a value in both First Name and Last Name, and press Tab key to shift focus. Full Name field will automatically be calculated.

When first and last name are entered, Full Name field value is calculated.

Thursday, November 29, 2012PrintSubscribe
Calculating Read-Only Fields with SQL

Let’s create a Full Name calculated field in the Employees controller. This field will display a concatenation of First Name and Last Name field values.

Start the Project Designer. In the Project Explorer, switch to the Controllers tab. Right-click on Employees / Fields node, and press New Field.

New Field context menu option in Code On Time web application Project Explorer.

Give this field the following settings:

Property Value
Name FullName
Type String
Length 80
Allow Null Values true
The value is calculated by a business rule expression true
Label Full Name
Values of this field cannot be edited true

Press OK to save the field.

In the Project Explorer, drag Employees / Fields / FullName (String(80), read-only) field node and drop it onto Employees / Views / createForm1 to create a data field.

Dropping Fullname field node onto 'createForm1' view.      FullName data field has been created in 'createForm1' view.

Right-click on Employees / Fields / FullName (String(80), read-only) node, and press Add SQL Converter.

Add SQL Converter context menu option in the Project Explorer.

Double-click on Employees / Fields / FullName node.

FullName field node in Employees controller.

Change the Context Fields property:

Property Value
Context Fields FirstName, LastName

Press OK to save the field. Double-click on Employees / Business Rules / FullName_Converter – Calculate|Insert|Update (Sql / Before) - r100 node.

'FullName_Converter' business rule node in Employees controller in the Project Explorer.

Replace the default script with the following:

Property New Value
Script
if @FirstName is not null and @LastName is not null
begin
    set @FullName = @FirstName + ' ' + @LastName
end

Press OK to save the business rule. On the Project Designer toolbar, press Browse.

Navigate to the Employees page, and create a new employee. Enter values in First Name and Last Name fields.

Values entered in LastName and FirstName fields.

When the user shifts focus away from the field, Full Name will be calculated.

When user shifts focus, the FullName field is calculated.
