Posts from October, 2012
Thursday, October 25, 2012PrintSubscribe
Order Form Sample–Part 19

When you create a new order detail, the Extended Price field will not be calculated and will only display N/A until you save the record.

The Extended Price field is not being updated when field values are changed.

Let’s make the field automatically update and provide instantaneous feedback to the user.

Switch back to the Project Designer, and double-click on OrderDetails / Fields / ExtendedPrice node.

Change the following settings:

Property Value
The value of this field is calculated by a business rule expression True
Context Fields ProductID, UnitPrice, Quantity, Discount

Press OK to save the field.

Right-click on OrderDetails / Business Rules node, and press New Business Rule.

New Business Rule context menu option for OrderDetails controller.

The field can be updated using an SQL, Code or JavaScript business rule. Pick one of the following three implementations.

SQL Business Rule

Assign the following values:

Property Value
Type SQL
Command Name Calculate
Phase Execute
Script
set @ExtendedPrice = @UnitPrice * @Quantity * (1 - @Discount)

Press OK to save.

Code Business Rule

Assign the following values:

Property Value
Type C# / Visual Basic
Command Name Calculate
Phase Execute

Press OK to save. On the toolbar, press Browse to generate the web app and create the business rule file.

When complete, right-click on OrderDetails / Business Rules / Calculate (Code / Execute) – r101 business rule node, and press Edit Rule in Visual Studio.

Edit Rule in Visual Studio context menu option for a code business rule.

The file will be opened in Visual Studio. Replace the body of the rule with the following implementation:

C#:

using System;
using MyCompany.Data;

namespace MyCompany.Rules
{
    public partial class OrderDetailsBusinessRules : MyCompany.Data.BusinessRules
    {

        [Rule("r101")]
        public void r101Implementation(int? orderID,
            string orderCustomerID,
            string orderCustomerCompanyName,
            string orderEmployeeLastName,
            string orderShipViaCompanyName,
            int? productID,
            string productProductName,
            string productCategoryCategoryName,
            string productSupplierCompanyName,
            decimal? unitPrice,
            short? quantity,
            float? discount,
            decimal? extendedPrice)
        {
            UpdateFieldValue("ExtendedPrice",
                Convert.ToDecimal(unitPrice) * Convert.ToDecimal(quantity) *
                (1 - Convert.ToDecimal(discount)));
        }
    }
}

Visual Basic:

Imports MyCompany.Data
Imports System

Namespace MyCompany.Rules

    Partial Public Class OrderDetailsBusinessRules
        Inherits MyCompany.Data.BusinessRules

        <Rule("r101")> _
        Public Sub r101Implementation(ByVal orderID As Nullable(Of Integer),
                                      ByVal orderCustomerID As String,
                                      ByVal orderCustomerCompanyName As String,
                                      ByVal orderEmployeeLastName As String,
                                      ByVal orderShipViaCompanyName As String,
                                      ByVal productID As Nullable(Of Integer),
                                      ByVal productProductName As String,
                                      ByVal productCategoryCategoryName As String,
                                      ByVal productSupplierCompanyName As String,
                                      ByVal unitPrice As Nullable(Of Decimal),
                                      ByVal quantity As Nullable(Of Short),
                                      ByVal discount As Nullable(Of Single),
                                      ByVal extendedPrice As Nullable(Of Decimal))
            UpdateFieldValue("ExtendedPrice",
                Convert.ToDecimal(unitPrice) * Convert.ToDecimal(quantity) *
                (1 - Convert.ToDecimal(discount)))
        End Sub
    End Class
End Namespace

Save the file.

JavaScript Business Rule

Assign the following values:

Property Value
Type JavaScript
Command Name Calculate
Phase Execute
Script
[ExtendedPrice] = [UnitPrice] * [Quantity] * (1 - [Discount]);
this.preventDefault();

Press OK to save the business rule.

Viewing the Results

On the toolbar, press Browse.

Navigate to the Order Form page, and select an order. Create a new order detail, and select a product. The Extended Price will be calculated using the default values.

New Order Details screen with a selected product and default values. The Extended Price has been calculated.

If you change any of the fields, the Extended Price will be recalculated when the user changes focus from the changed field.

Quantity has been changed and focus was shifted to the Discount field. Extended Price has been recalculated.

Thursday, October 25, 2012PrintSubscribe
Order Form Sample–Part 18

Let’s add an Extended Price field to show the final price of each line item in the order. This field will multiply price by quantity, and factor in the discount.

Switch to the Project Explorer, and activate the Controllers tab. Expand OrderDetails, and right-click on Fields. Select New Field option.

Create New Field option for 'OrderDetails' controller in Code On Time Designer

For the new field, enter the following settings:

Property Value
Name ExtendedPrice
Type Currency
The value of this field is computed at run-time by SQL Expression True
SQL Formula
OrderDetails.UnitPrice * OrderDetails.Quantity * (1 - OrderDetails.Discount)
Label Extended Price
Values of this field cannot be edited True
Data Format String c

Press OK to save the field. The OrderDetails alias used in the SQL Expression field above is referring to “command1” of the Order Details controller. The text of this command can be found at Order Details / Commands / command1 node.

Command1 of OrderDetails controller node in the Project Explorer.

Your application will incorporate the SQL Formula in the SELECT statements composed at runtime. The statement will be equivalent to the following simplified example.

select *,
    OrderDetails.UnitPrice * OrderDetails.Quantity *
    (1 - OrderDetails.Discount) ExtendedPrice
from "Order Details" OrderDetails

This is the output produced in SQL Management Studio if you try executing the simplified statement.

Result of 'SQL Formula' incorporated in SELECT statement

To make sure that the field will be displayed in the application pages, we’ll bind the field to the data view using data fields.

In the Project Explorer, drop OrderDetails / Fields / ExtendedPrice* (Currency, read-only) field node on OrderDetails / Views / grid1 view node.

Dropping ExtendedPrice field node onto 'grid1' view node.     ExtendedPrice field binding created in view 'grid1'.

Again, drop the field node onto OrderDetails / Views / editForm1 / c1 – Order Details category node.

Dropping ExtendedPrice field node onto 'c1' category node.     ExtendedPrice field binding created in view 'editForm1'.

Finally, drop the field node onto OrderDetails / Views / createForm view node.

Dropping ExtendedPrice field node onto 'createForm1' view node.     ExtendedPrice field binding created in view 'createForm1'.

On the toolbar, press Browse, and navigate to the Order Form page. Select an order from the list – the list of order details will have an Extended Price column.

Extended Price column available in Order Details grid view.

Thursday, October 25, 2012PrintSubscribe
Order Form Sample–Part 17

Let’s assign default values to fields Quantity and Discount of a new order detail record. These fields already have server defaults that are added when the order detail is saved to the database. It would be better to have these defaults displayed to the user before insertion, and have Discount formatted as percentage.

There are multiple ways of assigning a default value to the field. The following sections will describe each method.

SQL Business Rule

Switch to the Project Designer, and right-click on OrderDetails / Business Rules node. Select New Business Rule option.

New Business Rule context menu option for OrderDetails controller.

Assign the following values:

Property Value
Type SQL
Command Name New
Phase Execute
Script
set @Quantity = 1
set @Discount = 0

Press OK to save. On the toolbar, press Browse.

Navigate to the Order Form page, and select an order. Create a new order detail, and select a product. The Quantity and Discount fields will be populated with default values.

New Order Details form with default values for Quantity and Discount.

Code Business Rule

The Quantity and Discount fields can also be assigned defaults using C#or Visual Basic.

If you have created the SQL business rule in the previous section, delete it now.

Delete context menu option for the SQL business rule in Order Details controller.

Right-click on OrderDetails / Business Rules node, and press New Business Rule.

New Business Rule context menu option for OrderDetails controller.

Assign the following values:

Property Value
Type C# / Visual Basic
Command Name New
Phase Execute

Press OK to save the business rule. On the toolbar, press Browse to regenerate the web application and create the business rule file.

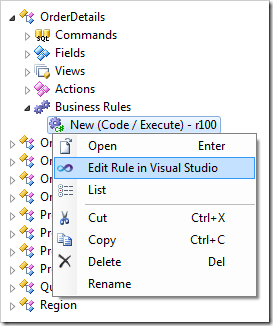

When complete, right-click on OrderDetails / Business Rules / New (Code / Execute) – r100 node, and press Edit Rule in Visual Studio.

Context menu option to edit the code business rule in Visual Studio.

The file will open in Visual Studio. Replace the body of the predefined business rule method with the following:

C#:

using System;
using MyCompany.Data;

namespace MyCompany.Rules
{
    public partial class OrderDetailsBusinessRules : MyCompany.Data.BusinessRules
    {

        [Rule("r100")]
        public void r100Implementation(int? orderID,
            string orderCustomerID,
            string orderCustomerCompanyName,
            string orderEmployeeLastName,
            string orderShipViaCompanyName,
            int? productID,
            string productProductName,
            string productCategoryCategoryName,
            string productSupplierCompanyName,
            decimal? unitPrice,
            short? quantity,
            float? discount)
        {
            UpdateFieldValue("Quantity", 1);
            UpdateFieldValue("Discount", 0);
        }
    }
}

Visual Basic:

Imports MyCompany.Data
Imports System

Namespace MyCompany.Rules

    Partial Public Class OrderDetailsBusinessRules
        Inherits MyCompany.Data.BusinessRules

        <Rule("r100")> _
        Public Sub r100Implementation(ByVal orderID As Nullable(Of Integer),
                                      ByVal orderCustomerID As String,
                                      ByVal orderCustomerCompanyName As String,
                                      ByVal orderEmployeeLastName As String,
                                      ByVal orderShipViaCompanyName As String,
                                      ByVal productID As Nullable(Of Integer),
                                      ByVal productProductName As String,
                                      ByVal productCategoryCategoryName As String,
                                      ByVal productSupplierCompanyName As String,
                                      ByVal unitPrice As Nullable(Of Decimal),
                                      ByVal quantity As Nullable(Of Short),
                                      ByVal discount As Nullable(Of Single))
            UpdateFieldValue("Quantity", 1)
            UpdateFieldValue("Discount", 0)
        End Sub
    End Class
End Namespace

Save the file. The default values will function as described earlier when an order detail record is created.

JavaScript Business Rule

The third method of implementation is by using JavaScript.

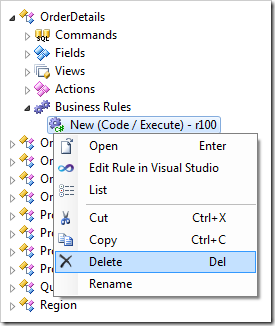

If you have created the SQL or Code business rules described above, delete them now.

Delete context menu option for the code business rule in OrderDetails controller.

Right-click on OrderDetails / Business Rules node, and press New Business Rule.

New Business Rule context menu option for OrderDetails controller.

Assign the following values:

Property Value
Type JavaScript
Command Name New
Phase After
Script
[Quantity] = 0;
[Discount] = 1;

Press OK to save. If you browse the application and create a new order detail record, the Quantity and Discount fields will be assigned default values as described earlier.

Formatting Discount as Percentage

In the Project Explorer, double-click on OrderDetails / Fields / Discount node.

Discount field node in OrderDetails controller in the Project Explorer of Code On Time web application Designer.

Change the Data Format String property:

Property New Value
Data Format String p

Press OK to save the field, and regenerate the project. Navigate to the Order Form page. Select an order, and create a new order detail. Select a product for the order detail. Discount field is now formatted as a percentage (0.00%).

Discount field is now formatted as a percentage.

Continue to Cascading Lookups
