Business Rules / C# and Visual Basic

  "Soft" Filtering

Business Rules / C# and Visual BasicPrint||
"Soft" Filtering

Code On Time web applications offer impressive adaptive filtering and search capabilities that require zero programming. Consider the following screen shot from the Northwind sample.

A complex filter defined at runtime by an application user

Application user has selected specific categories,

User-defined category filter

specific suppliers,

User-defined supplier filter

a range of prices,

User-defined unit price filter

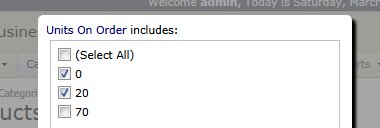

and specific values of product units on order.

User-defined 'units on order' filter

A user can remove the filter at will by either clicking on individual filter elements or dismissing the entire filter.

User can remove the filter at will by either clicking on individual filter elements or dismissing the entire filter

An application developer can also configure a filter based on arbitrary conditions at runtime. The filter can be constructed just before the data is retrieved from the database.  Users will see the filter as if they have selected all options on their own. End users can always cancel or adjust the “soft” filter to reveal more data rows.

This may be useful when a specific data row has to be brought to the application user’s attention.  “Soft” filtering will work even better when combined with the auto highlight first row or auto select first row features.

Enable shared business rules in your web application and enter the following code.

C#:

using System;
using System.Data;
using System.Collections.Generic;
using System.Linq;
using MyCompany.Data;

namespace MyCompany.Rules
{
    public partial class SharedBusinessRules : MyCompany.Data.BusinessRules
    {
        [ControllerAction("Orders", "grid1", "Select", ActionPhase.Before)]
        public void AssignOrdersFilter()
        {
            if (!IsTagged("Filtered"))
            {
                AddTag("Filtered");
                DateTime startDate = new DateTime(1998, 1, 1, 0, 0, 0, DateTimeKind.Utc);
                DateTime endDate = new DateTime(1998, 6, 1, 23, 59, 59, DateTimeKind.Utc);
                AssignFilter(
                    new FilterValue("OrderDate",
                        RowFilterOperation.Between, startDate, endDate),
                    new FilterValue("EmployeeLastName",
                        RowFilterOperation.Equal, "Callahan"),
                    new FilterValue("ShipViaCompanyName",
                        RowFilterOperation.Includes, "Speedy Express", "United Package"),
                    new FilterValue("Freight",
                        RowFilterOperation.Between, 10, 30)
                );
                Result.ShowViewMessage("A \"soft\" filter has been applied to this list.");
            }
        }
    }
}

Visual Basic:

Imports MyCompany.Data
Imports System
Imports System.Collections.Generic
Imports System.Data
Imports System.Linq

Namespace MyCompany.Rules
    Partial Public Class SharedBusinessRules
        Inherits MyCompany.Data.BusinessRules

        <ControllerAction("Orders", "grid1", "Select", ActionPhase.Before)> _
        Public Sub AssignOrdersFilter()
            If Not IsTagged("Filtered") Then
                AddTag("Filtered")
                Dim startDate As DateTime = New DateTime(1998, 1, 1, 0, 0, 0, DateTimeKind.Utc)
                Dim endDate As DateTime = New DateTime(1998, 6, 1, 23, 59, 59,
DateTimeKind.Utc) AssignFilter( New FilterValue("OrderDate", RowFilterOperation.Between, startDate, endDate), New FilterValue("EmployeeLastName", RowFilterOperation.Equal, "Callahan"), New FilterValue("ShipViaCompanyName", RowFilterOperation.Includes, "Speedy Express", "United Package"), New FilterValue("Freight", RowFilterOperation.Between, 10, 30) ) Result.ShowViewMessage("A ""soft"" filter has been applied to this list.") End If End Sub End Class End Namespace

Save the code file and navigate to the page Orders. The method AssignOrdersFilter will be invoked when the data is about to be retrieved. The method will apply a filter one time only in the lifecycle of the page instance displayed in the web browser to prevent interference with application user actions.

Notice that we are filtering by UTC dates to ensure that Microsoft.NET will not try to compensate for the time difference between the server and the web browser.

In the end, the method will display a view-level message rendered just above the grid view informing the app user about the “soft”- filter.

A list of orders with the 'soft' filtered applied in the business rules method

Select data view Customers/ Orders / container1 / view in the Project Explorer.

Data view selected in the Project Explorer

If you enable Search On Start in the data view properties then the Orders page will open up with the search bar pre-filled with filter values and no data will be displayed. Users will have to click Search to initiate the retrieval of data.

'Soft' filter will be displayed in the search bar if the data view property 'Search on Start' is turned on

If you have enabled automatic selection or highlighting of the first row in the properties of the page data view then the view will perform the first action in the context menu of the first data row or simulate a click in the first row. This sort of behavior will happen even if you do not “soft” filter the data.

You can also coincide the selection or highlighting of the first row with the assignment of a “soft” filter in business rules  by calling Result.SelectFirstRow or Result.HightlightFirstRow right after the call of ShowViewMessage method.

For example, this is the effect of Result.HighlightFirstRow method call.

The effect of calling AssignFilter and HighlightFirstRow methods in the business rules prior to data selection

Developers should use access control rules or filter expressions when the application business logic does not permit cancellation of data filters at will by the application users.
