Data Views

Data views are instances of data controllers that are placed in page containers. When the views and fields of the controller are changed, the data view will inherit the changes. However, any changes to the data view will not affect the controller.

Data views display the data to the end user, and are the primary method for the user to interact with the web application.

Data views can be accessed by selecting a page and switching to the Data Views tab. They can also be accessed by selecting a page container and switch to the Data Views tab.

Data Views tab for Customers page in the Project Browser.

The context menu option Show All Data Views in the Project Explorer  will display the list of data views..

Show All Data Views context menu option in the Project Explorer.

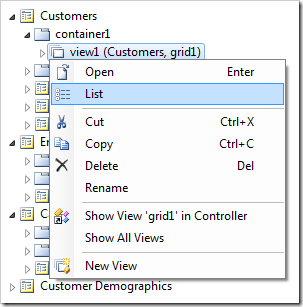

The context menu option List will also open the list of data views.

List context menu option in the Project Explorer.

A data view can also be located by entering the name of the data view and a few unique properties in the configuration navigator.

A data view located in the configuration navigator.

The data view edit form can be opened by clicking on the Id or using the Open context menu option.

Open context menu option in the Project Browser.     Data View properties page open in the Project Browser.

The Sync context menu option will synchronize the Project Explorer with the relevant data view.

Sync context menu option in the list of data views.     View1 synched with the selected data view in the Project Browser.

The data view Id can be changed using Rename context menu option.

Context menu Rename option in the Project Explorer.

Data views can be rearranged by dragging the data view nodes in the Project Explorer.

View2 dropped after view4 in the Project Explorer.     View2 placed after view4 in the Project Explorer.
